| Business Type | Manufacturer, Exporter, Supplier |
| Model Number | NT10000 |
| Installation Support | Refer To Installation Videos (UNPACKING + INSTALLATION + WORKING VIDEOS) |
| Power Requirement | 220 V AC/50 Hz; DC Adapter Will Be Provided |
| Click to view more | |
Product Details
Dimensions (L x B x H)
400 × 270 × 300mm (excluding Drainpipe And User Interface Protrusion)
Lid Material
Transparent
Liquid Dispensing
Centre Hole In The Lid For Liquid Dispensing
Safety Feature
Lid Interlock Safety For Open Cover
Spirit Level
External

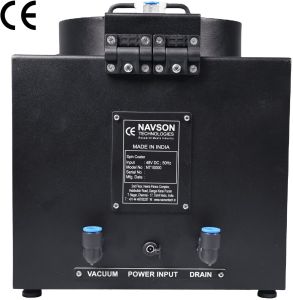

Vacuum Connections
10 Mm PU Hose – 2 M Length (default)
Substrate Holding Vacuum
650mmhg Maximum
Working Chamber Size
8″ Diameter × 4″ Height
Working Chamber Material
PTFE‐coated Corrosion‐free Metal
Optional Purchase
Customized Chuck (vacuum Or Vacuum‐less) To Hold Substrates From 5 To 150 Mm Dia.
Substrate Size
5 To 150mm Diameter
Substrate Holding Mechanism
Vacuum, Vacuum‐less & Hybrid
Storage Capacity
20 Programs
Program Steps
100 Steps Per Program
User Interface
Keypad With LCD Display
Housing Material
Corrosion‐free Powder‐coated Sheet Metal – Glove Box Compatible
Drainpipe
At The Bottom Of Working Chamber
Drive System
BLDC Motor
Acceleration
100 – 5000 Rpm/s
Speed
500 – 10000 Rpm
Country of Origin
India
Warranty
12 Months Warranty With 3 Years Of Support
Certification
CE Certified, ISO 9001:2015
Standard Chucks
1 Vacuum Chuck (10 mm × 10 mm to 2″ dia. substrate)
Time per Step
1000 Seconds
Integrated Vacuum switch
Yes (ON/OFF)
Purging
Pneumatic Connection in the Lid for Nitrogen Purging

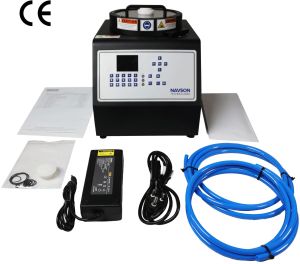

Accessories
Oil‐Free Vacuum Pump

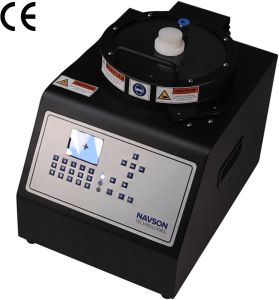

The NT10000 combines a rugged body with a PTFE-coated working chamber for effortless cleaning and broad chemical resistance. Its keypad interface can be programmed up to 100 steps and has internal storage and displays real-time speed & time.
Features:
Intuitive Keypad Control
- Membrane keypad and LCD display
- Store up to 10 custom spin recipes (speed, dwell time, acceleration)
- Real-time monitoring of RPM and run time.
- Rigid, vibration-damped construction for uniform film coating
- Chemical- and impact-resistant finish
- Safety interlock on chamber lid
- Ultra-low surface energy for rapid de-bubbling and minimal carry-over
- Exceptional resistance to acids, bases, and organic solvents
- Smooth, non-porous surface for effortless cleaning
