Product Details

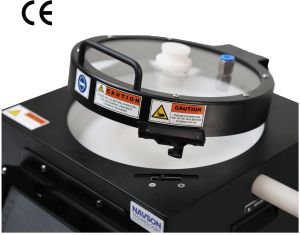

Featuring a 100% Natural Polypropylene solid working chamber for zero metal exposure and ultra-low particle generation, the NT12000 delivers up to 12 000 RPM with ±1 % speed accuracy. Its advanced touchscreen UI supports 10-step process recipes and unlimited program storage for maximum flexibility. Real-time display of RPM, time, and ramp profiles with USB export of full run logs. Ideal for high-precision photoresist lithography, ceramic coating, OLED/quantum-dot deposition, perovskite PV layers, MEMS/NEMS films, and photonic coatings. Safety interlocks, over-speed, and CE certification ensure reliable operation. Accessories include vacuum or vacuum-free chucks, Infra-Red Heating for drying the substrates and UV for curing the coatings.
Features:
- Wireless remote operation
- Suitable for situations where remote working is necessary with a working distance of 10 mts from the instrument (Eg. Glove Box)
- Integrated vacuum control and USB data-logging for process validation.
- Android™ touch UI, 10 steps per program
- Store up virtually unlimited recipes
- Live Graphical representation of RPM vs Time
- Glove-Box Compatible (Tested & Certified)
- Fits through Antechamber of glovebox*
- Remote operation from outside glovebox to ensure a comfortable operation for the user
- User Interface Tab can be fitted onto the Glove-Box wall (On request)
- Natural Polypropylene Working Chamber
- Ø 10″ Diameter Bowl with translucent UV-safe lid; 100% virgin homopolymer construction
- Handles 5 – 200 mm substrates via vacuum, vacuum-less & hybrid chucks
- Inert Gas purging facility
- Simple & quick cleaning with side drainage facility with optional Solution Spillage Containers
- > 1 M HCl & NaOH Resistant — Impervious to strong acids and alkalis
- Solvent-Proof Construction — Compatible with acetone, toluene, isopropanol, and more
- Guarantees sample purity, no contamination and zero leaching.
